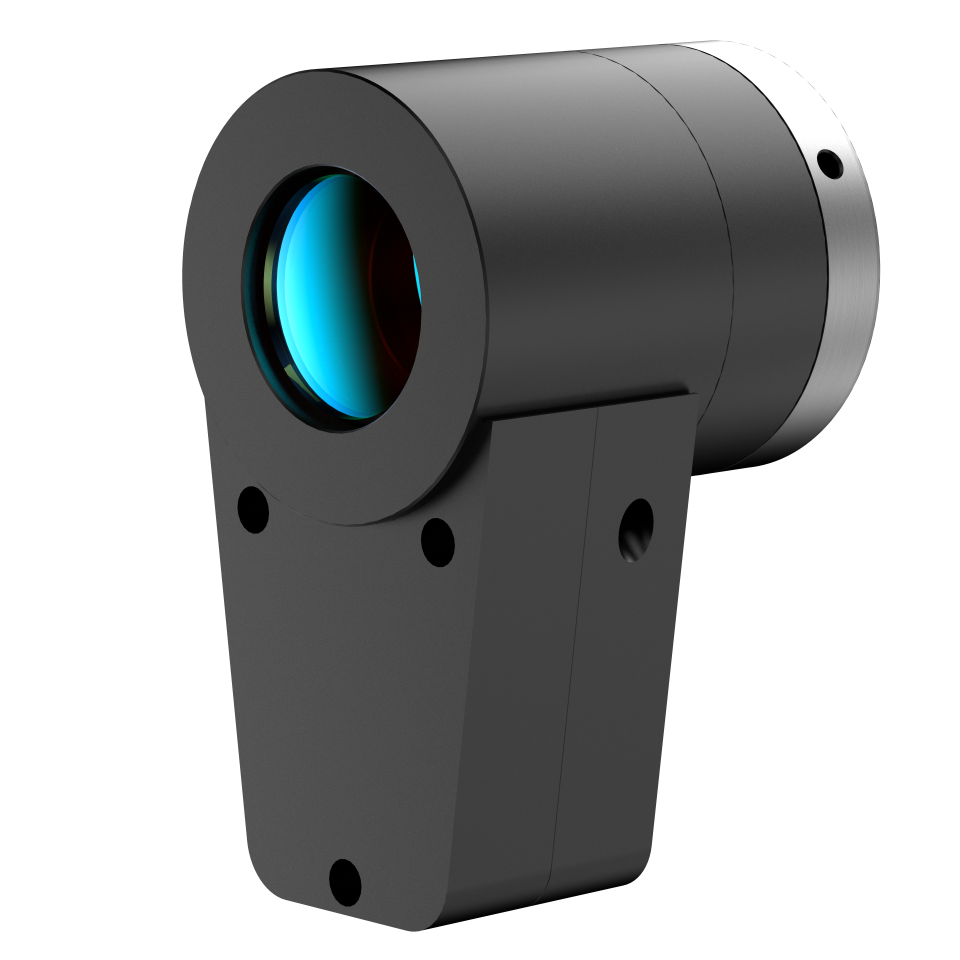

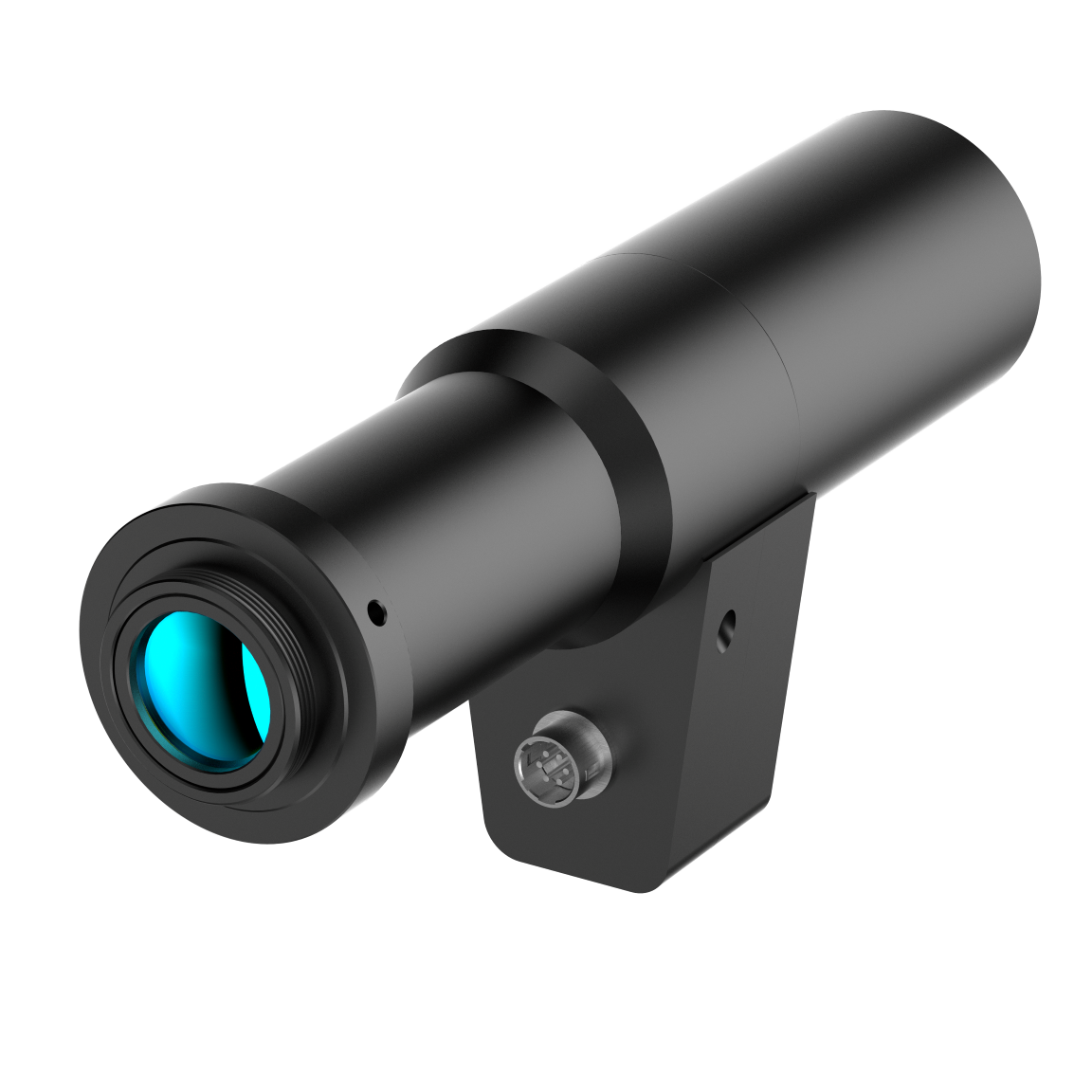

What Is a Liquid Lens?

A liquid lens is a new type of optical component that uses liquid materials as the optical refraction medium. It utilizes external stimuli such as changes in electric field, magnetic field, or temperature to alter the surface shape of the liquid material, thereby realizing dynamic adjustment of the lens’s focal length, focal position, or aperture size.

This design breaks the limitation of traditional optical lenses that rely on mechanical structures for adjustment, and features advantages including fast response speed, small size, and strong integrability. It has broad application prospects in fields such as optical imaging, biomedicine, and industrial inspection.

What Is the Working Principle of a Liquid Lens?

Liquid lenses mainly operate based on the electrowetting effect or electromagnetic control principle:

Taking the electrowetting effect as an example, a liquid lens is usually composed of two immiscible liquids (such as conductive liquid and insulating liquid), which are encapsulated in a transparent container. When a voltage is applied to the container’s electrodes, the interfacial tension between the conductive liquid and the insulating liquid changes, causing the surface shape of the liquid to alter—similar to adjusting the curvature of a traditional lens. This enables continuous adjustment of the focal length.

As for liquid lenses based on electromagnetic control, they adjust the lens shape by using the effect of a magnetic field on magnetic liquids, thereby achieving the adjustment of optical performance.

What Advantages Do Liquid Lenses Have Over Traditional Optical Lenses?

Compared with traditional optical lenses, liquid lenses have distinct advantages:

First, they offer fast adjustment speed. Traditional lenses take a relatively long time to adjust the focal length through mechanical structures, while liquid lenses can complete focal length adjustment in milliseconds.
Second, they have no mechanical wear. Liquid lenses achieve their functions by changing the shape of liquid, avoiding wear of mechanical components caused by long-term use, thus improving service life and stability.
Third, they are compact in size, making them easier to integrate into miniaturized devices such as micro-cameras and wearable devices.
Fourth, they can realize continuous zooming, providing more flexible adjustment of optical performance to meet diverse imaging needs.

What Impact Does the Response Time of Liquid Lenses Have on Practical Applications?

The response time of a liquid lens refers to the duration from the triggering of an external signal to the completion of the lens’s optical parameter adjustment.

This metric holds critical significance in fast dynamic imaging scenarios—such as high-speed moving object photography and real-time biological cell observation.

A typical example is in industrial automated inspection: when imaging and inspecting products on a high-speed conveyor belt, if the liquid lens has a long response time, it may result in blurred captured images or failure to timely capture key information, which impairs inspection efficiency and accuracy.

In contrast, a liquid lens with short response time can quickly adapt to scene changes (e.g., rapid adjustments to focal length or aperture as objects move), ensuring stable image quality and reliable inspection precision.

In other fields like real-time microscopy (e.g., tracking dynamic cell activities) or high-frame-rate photography, short response time similarly enables the liquid lens to keep up with fast-changing targets, avoiding imaging delays and ensuring the validity of observational or captured data.

In Which Fields Are Liquid Lenses Mainly Used?

Liquid lenses have a wide range of applications across various fields:

In the consumer electronics field, they are used in smartphone cameras to achieve fast autofocus and optical zoom, enhancing the shooting experience for users.
In the biomedical field, they can be integrated into microscope systems to enable dynamic focusing observation of tiny biological samples, supporting cell research, pathological testing, and other related work.
In industrial inspection, they are suitable for rapid imaging and inspection of objects at different heights and positions—such as detecting surface defects on circuit boards and measuring the dimensions of precision parts.
Additionally, they are applied in fields like security monitoring, unmanned driving, and intelligent robots, providing flexible and efficient optical imaging solutions for related equipment.

What Key Parameters Should Be Considered When Selecting a Liquid Lens?

When selecting a liquid lens, the following parameters need to be focused on:

The focal length adjustment range determines the lens’s zoom capability and should be chosen based on the actual application’s requirements for shooting distance and image size. The aperture size affects the amount of light entering the lens and the depth of field; appropriate aperture parameters are particularly important in low-light environments or scenarios where depth of field needs to be controlled. The response time is directly related to the lens’s performance in dynamic scenarios. The operating temperature range determines the lens’s applicable environment; if the application scenario has large temperature variations, a liquid lens with a wide operating temperature range should be selected. In addition, parameters such as the lens’s optical resolution and interface type also need to match the supporting equipment.

What Are the Future Development Trends of Liquid Lenses?

In the future, liquid lenses will develop toward higher performance, more functions, and wider applications:

In terms of performance, they will continuously improve focal length adjustment precision, response speed, and optical resolution to meet more stringent imaging requirements.

In terms of functions, they will be deeply integrated with technologies such as artificial intelligence (AI) and the Internet of Things (IoT), enabling intelligent adjustment of optical parameters and scenario self-adaptation.

In terms of application fields, their use will be further expanded. Beyond existing industries, they are expected to play an important role in emerging fields such as virtual reality (VR), augmented reality (AR), and intelligent medical devices. At the same time, the production cost will be reduced to enhance the market popularity of the products.
